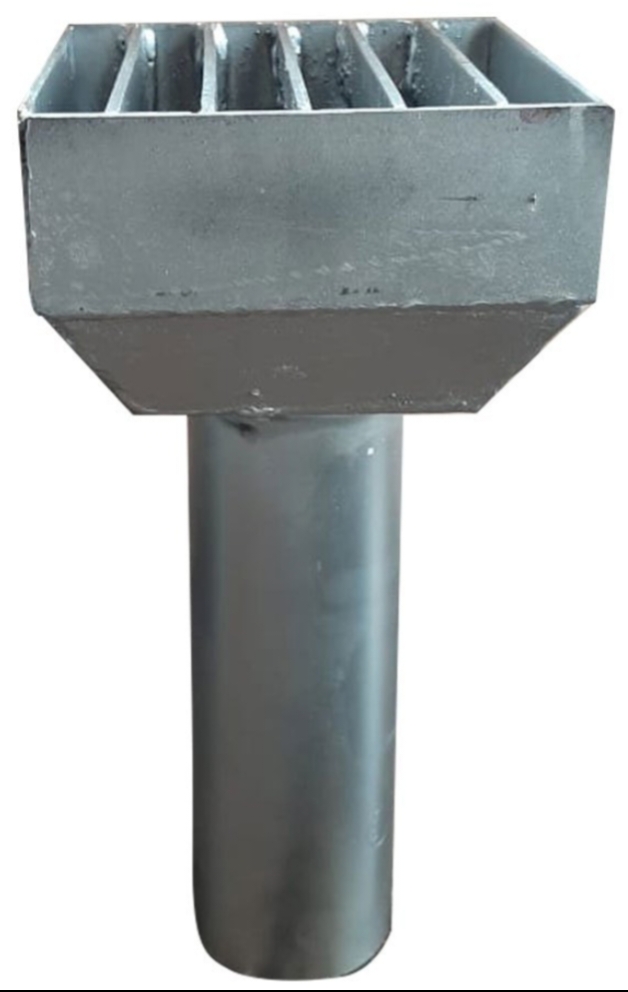

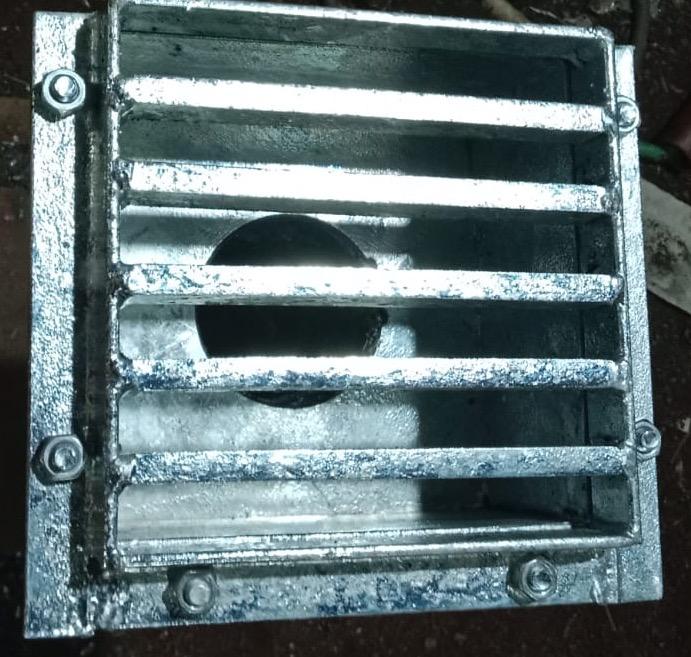

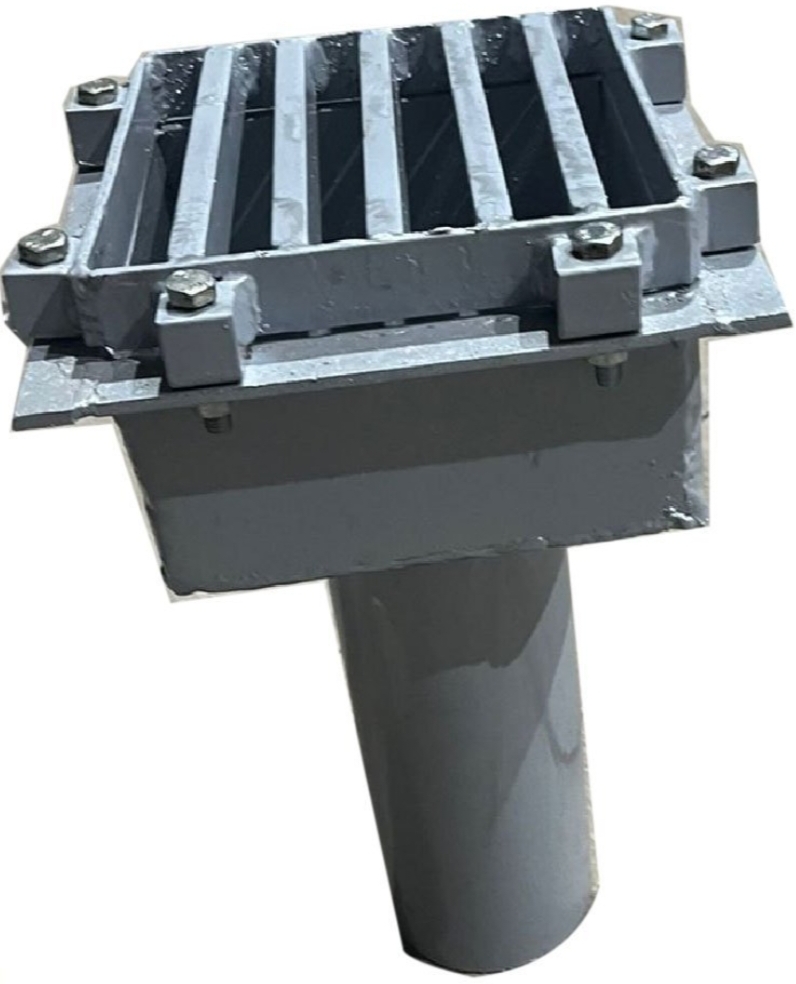

Drainage Spout For Bridge

About Drainage Spout For Bridge

A Bridge Drainage Spout is a specialized drainage component designed to manage and direct water runoff from the surface of bridges and other elevated roadways. It prevents water accumulation that could lead to structural damage or create hazardous conditions for vehicles and pedestrians.

Product Description:

The Bridge Drainage Spout is engineered for durability and efficient water flow, making it ideal for handling high volumes of water runoff. It is typically made from high-strength, corrosion-resistant materials such as galvanized steel, stainless steel, or cast iron to withstand harsh weather conditions and heavy traffic loads.

Key Features:

• Material: Available in galvanized steel, stainless steel, or cast iron for long-lasting durability.
• Design: Optimized for high-volume water drainage, preventing water pooling and road surface damage.
• Shape: Cylindrical or rectangular outlet, with a flared or slotted top to collect runoff efficiently.
• Mounting: Installed at various intervals along the bridge deck or parapet walls to direct water away from critical structural components.
• Corrosion Resistance: Protected against rust and wear from exposure to weather and de-icing chemicals.
• Sizes: Available in multiple sizes to suit different bridge designs and drainage requirements.
• Performance: Ensures smooth drainage to prevent water accumulation, ice formation, and roadway deterioration.

This drainage spout is a critical component in bridge infrastructure, enhancing safety and preserving the structural integrity of the bridge by effectively managing water runoff.Bridge drainage spouts are typically installed on the sides of the bridge deck. The exact location depends on the design of the bridge, but they are usually positioned near the edges or parapet walls, where they can efficiently collect and channel water runoff from the road surface.

Placement Considerations:

1. Edge of the Deck: Drainage spouts are installed along the outer edges of the bridge deck to capture runoff and direct it downward, away from the bridge structure.

2. Underneath the Parapet Wall: They may be placed beneath or through the parapet walls to ensure water is collected and channeled through the spouts.

3. At Regular Intervals: Multiple spouts are spaced at regular intervals along the bridge to ensure even water drainage and prevent pooling at any specific location.

The positioning is crucial to avoid water buildup, which could cause damage to the road surface, compromise the bridges structural integrity, or create hazardous driving conditions due to standing water or ice formation.

Engineered for Demanding Bridge Environments

This drainage spout is specially constructed for bridge decks subject to water and stormwater exposure. Its iron body, high corrosion resistance, and robust coatings safeguard against harsh conditions. With a working pressure rating up to 10 Bar and temperature endurance up to 350C, it ensures reliable performance on both road and railway bridges while requiring minimal maintenance.


Versatile Sizes and Configurations

Available in a wide range of sizes (80 mm to 300 mm ID) and shapes (round or rectangular), this spout accommodates diverse drainage requirements. Flange types and drilled patterns conform to IS, ASTM, or DIN standards. Outlets may be vertical or horizontal, ensuring adaptability to structural and design needs.


Installation and Customization

Installation is straightforward on deck slabs, thanks to surface mounting and bolted flange connections. Each unit is fabricated or cast as per project requirements, with finish choices like epoxy painting, bitumen coating, or hot dip galvanization for extra durability. Customizable to IS 9523 or client-specific standards, the spout supports varied bridge drainage applications.
