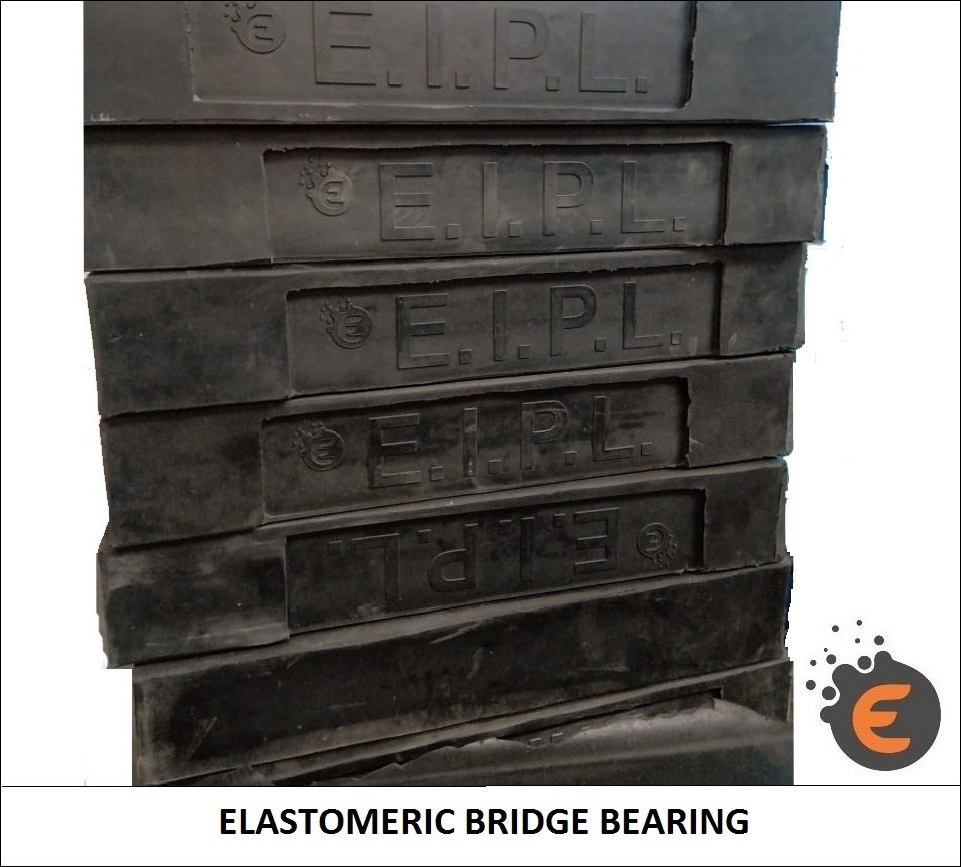

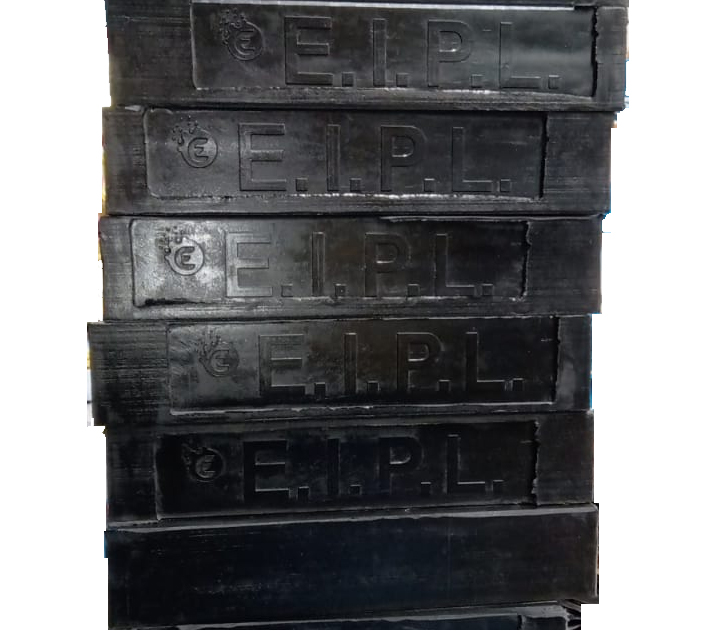

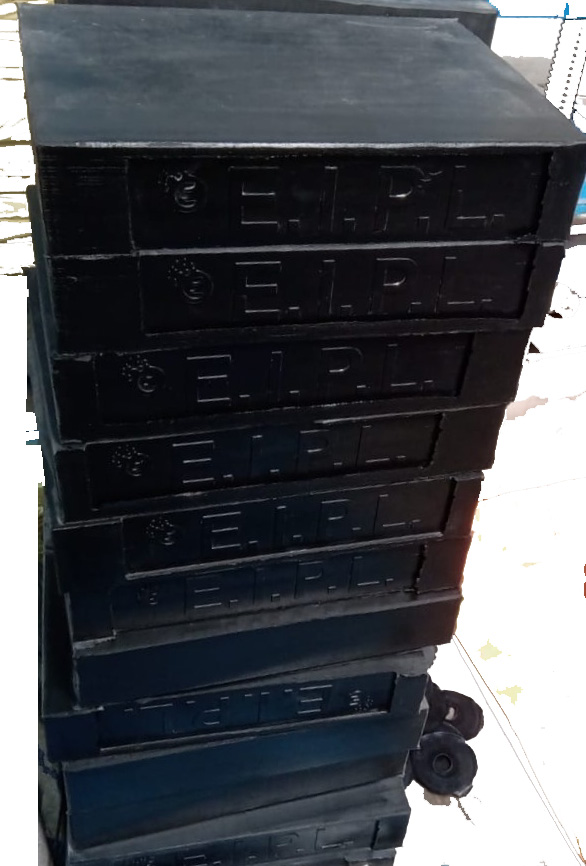

Elastomeric Bearing - Color: Black

Name: Elastomeric Bearing - Color: Black
Brand: ELASTOMER INDUSTRIES PRIVATE LIMITED
Price: 2600.0 INR
Availability: InStock

Price 2600.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Elastomeric Bearing - Color: Black Specification

Tensile Strength
19.25 Megapascals (MPa )

Usage & Applications
Bridge

Hardness
62A

Diameter
320 Millimeter (mm)

Thickness
500 Millimeter (mm)

Product Type
Elastomeric Bridge Bearing

Size
500

Material
Neoprene

Color
Black

Resistance level
12 KN/M

Length
84 Millimeter (mm)

Width
320 Millimeter (mm)

Ash %
3.6

Elastomeric Bearing - Color: Black Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Against Delivery (CAD), Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Policy
Within a certain price range free samples are available

Main Domestic Market
West Bengal, Mizoram, Meghalaya, Manipur, Bihar, Jharkhand, Odisha, Assam, Chhattisgarh, Sikkim, Tripura

About Elastomeric Bearing - Color: Black

EIPL Elastomeric Bridge Bearing are designed and manufactured as per IRC 83 part II 2015,with its latest amendment to meet the requirements of MORT & H specification for road and bridge work to section no: 2000 to clause no 2005 ( Elastomeric bearing ) and to international specification Union of Railways Code No UIC 772 2R (Use of Rubber bearings for Railway Bridges) and BS EN 1337 3/2005 (Structural bearing part 3: Elastomeric bearing).
EIPL Elastomeric bridge bearing consists of one or more internal layers of elastomer bonded to internal steel laminates shall be cast in single unit mould and vulcanized under heat and pressure to cater for translation or rotation of the superstructure by elastic deformation.
The raw elastomer used in bearings is polychloroprene of make : Neoprene W & WRT, Bayprene 110 & 210, Skyprene B5 & B30, Denka S 40 & M 40 of low crystallization rate and adequate shelf life.
The content of the poly chloroprene of the bearings shall not be lower than 60% and the ash content shall be less than 5%. The steel laminates used in bearings shall meet the specification of IS: 2062/ IS: 1079

Physical Properties

physical

Technical Data of Bearings

10 KN is equivalent to 1Mt
Shear Modulus of the bearing shall be 0.9 +/ -0.18Mpa
Design Load of the bearing is equivalent to 10MPa
Shear Bond test (Horizontal movement up to 2 x total elastomer thickness)
Dimension can also be designed as per requirement.

Design of The Elastomeric Bearings

The overall length divided by overall width shall be less than or equivalent to two.
If thickness of steel laminate is 3mm, then thickness of elastomer layer shall be either 8 or 10mm.
If thickness of steel laminate is 4mm, then thickness of elastomeric layer shall be 12mm.
Minimum thickness of top and bottom cover layer shall be 2.5 mm and minimum thickness of side cover shall be
4mm.
