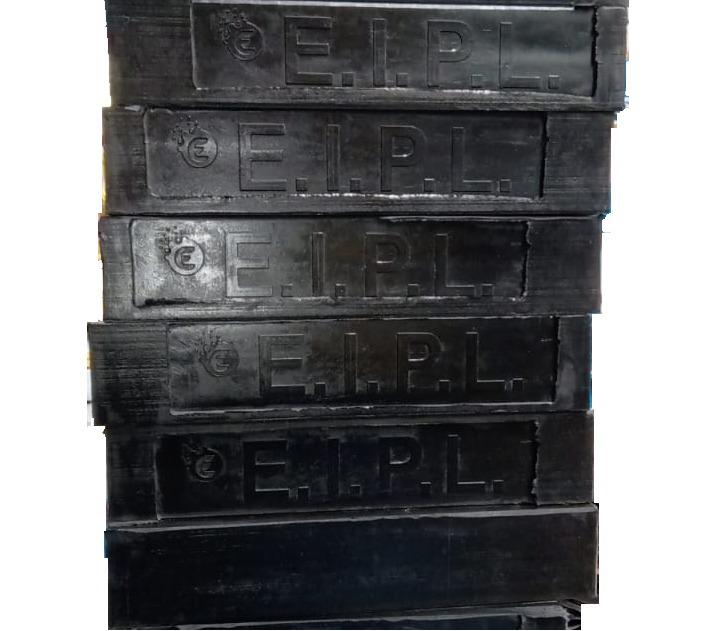

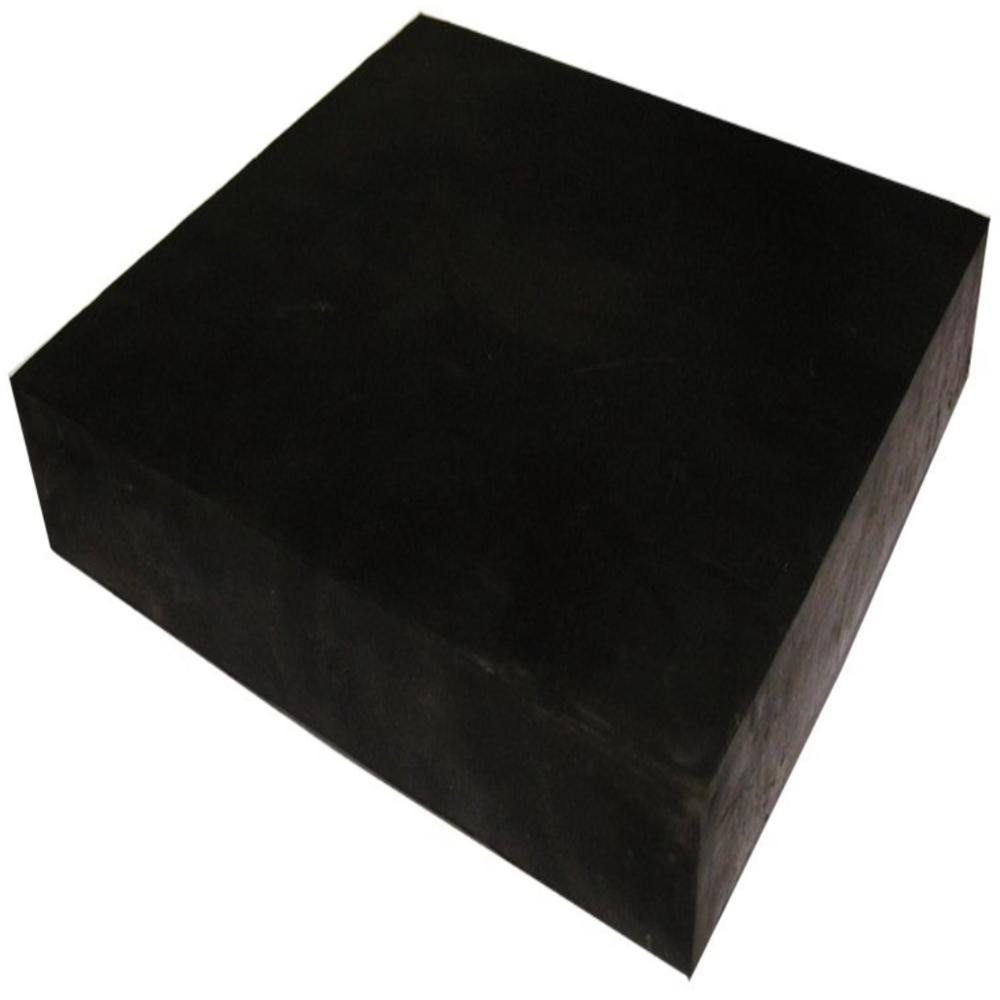

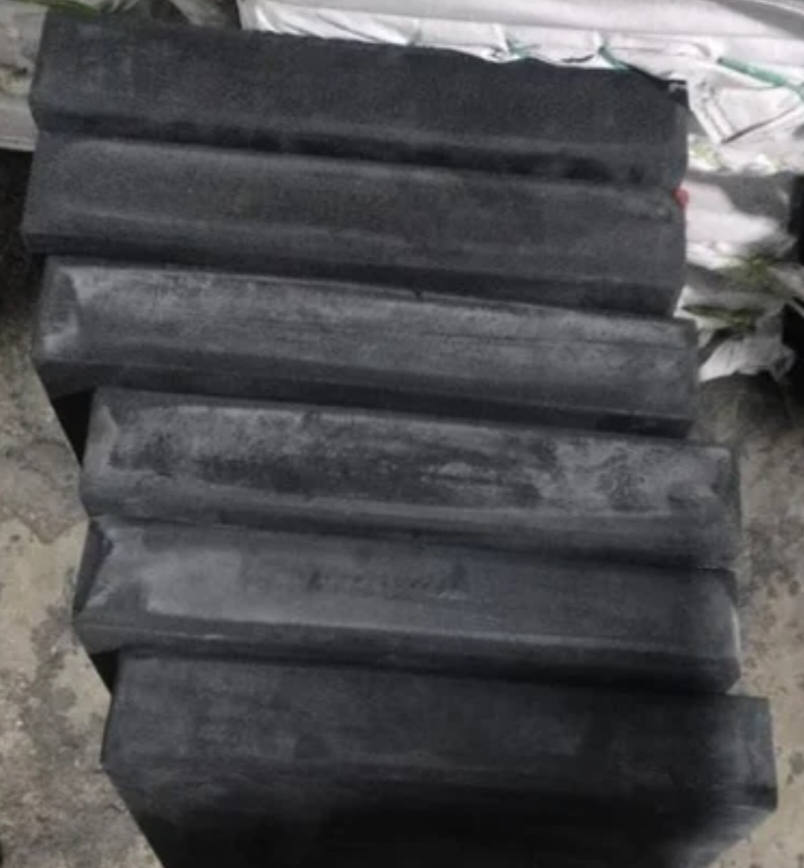

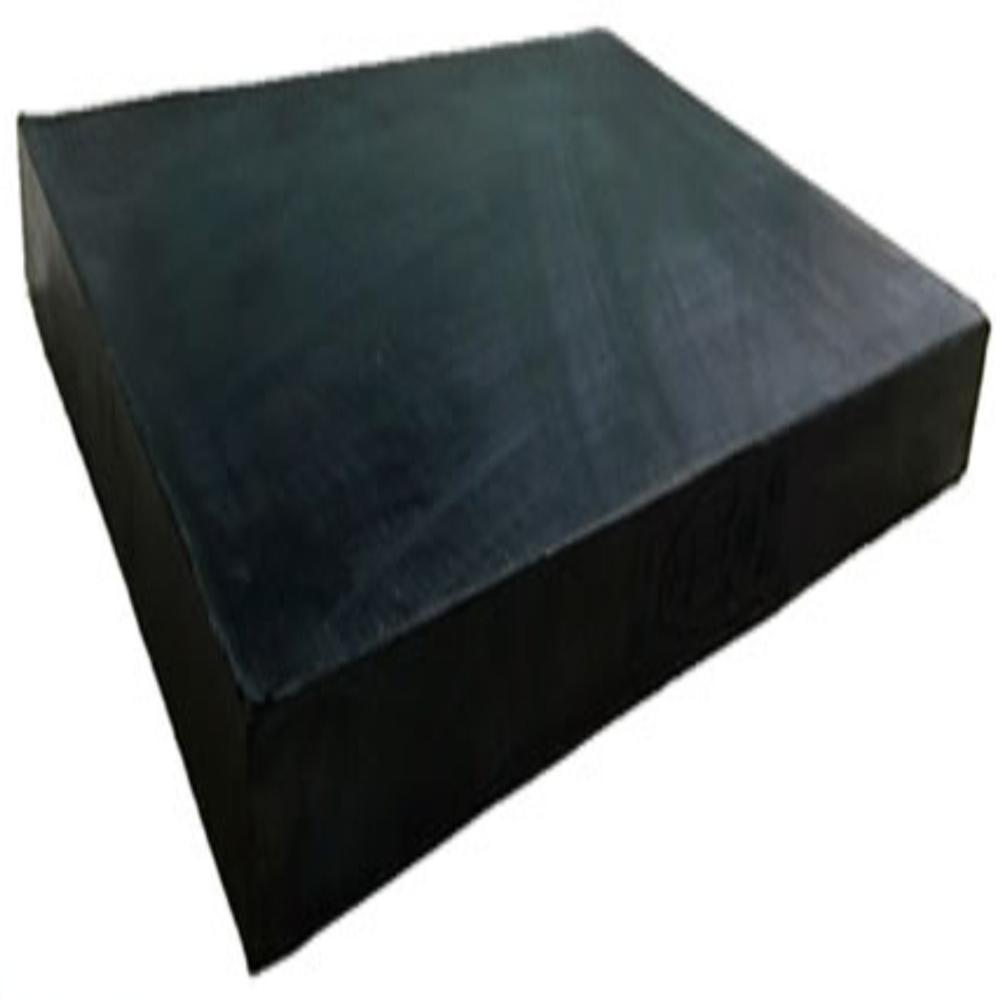

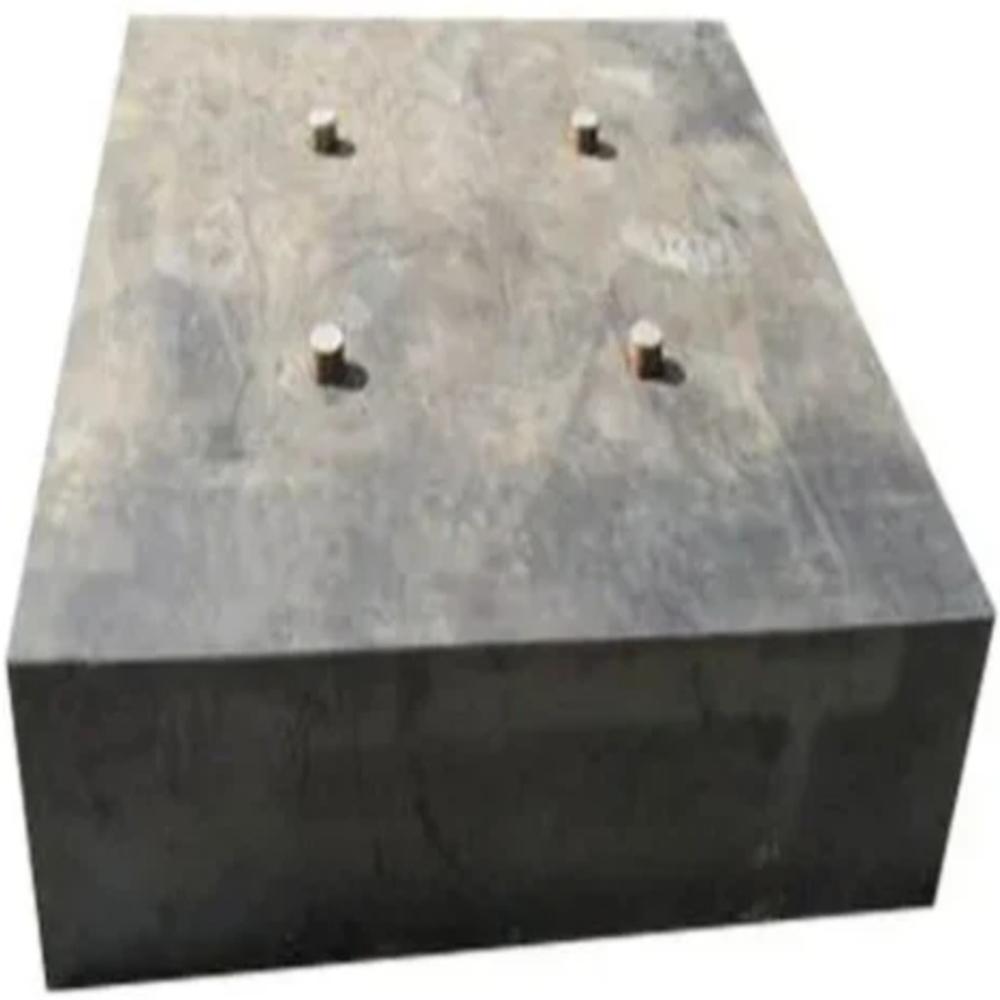

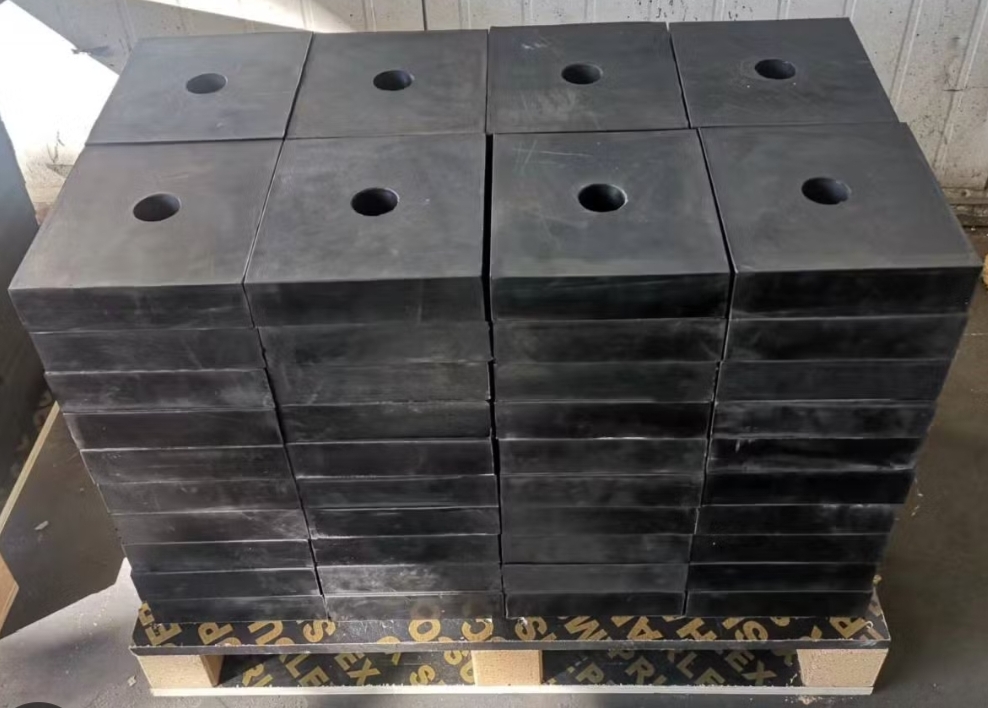

Rubber Bridge Bearing Pads

Name: Rubber Bridge Bearing Pads
Brand: ELASTOMER INDUSTRIES PRIVATE LIMITED
Price: 3600.0 INR
Availability: InStock

Price 3600.0 INR/ Piece

Get a Price/Quote

MOQ : 6 Pieces

Rubber Bridge Bearing Pads Specification

Length
100 mm to 2000 mm (for rectangular pads)

Temperature Resistance
-40C to +70C

Color
Black

Thermal Conductivity
Very low

Feature
Durable, waterproof, high load-bearing, anti-vibration

Density
0.05 Gram per cubic centimeter(g/cm3)

Part Type
Bridge Bearing

Ash %
Less than 5%

Thickness
500 Millimeter (mm)

Compression Ratio
Up to 10% of original thickness

Water Absorption
< 1%

Components
Rubber pad, reinforcement plates

Surface Finish
Smooth, anti-slip

Style
Rectangular / Circular

Rubber Type
Laminated natural or neoprene rubber

Product Type
Bridge Bearing Pad

Diameter
320 Centimeter (cm)

Size
As per client specification

Material
Natural rubber, Chloroprene rubber (CR), Neoprene

Width
100 mm to 500 mm (customizable)

Usage & Applications
Bridge construction, vibration isolation, structural expansion joints

Weight
Varies with size

Natural Rubber
Yes

Flame Resistance Level
Not flame resistant

Resistance level
Excellent weather and aging resistance

Hardness
60 5 Shore A

Tolerance
1 mm

Tensile Strength
> 16 MPa

Ozone Resistance
Excellent

Service Life
More than 20 years

Load Capacity
Up to 1000 kN or customized

Elongation at Break
> 400%

Manufacturing Process
Compression Molding

Shear Modulus
0.9 0.2 MPa

Shape
Rectangular and circular available

Installation
Easy to install, minimal maintenance required

UV Resistance
High

Standard
Complies with IS:3400, AASHTO, BS EN 1337

Rubber Bridge Bearing Pads Trade Information

Minimum Order Quantity
6 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Rubber Bridge Bearing Pads

It is therefore a common, though not exclusive, application of elastomeric bearing pads to ensure that the infrastructure remains stable. To accomplish elastomeric bearings, bridges are provided with flexible lining. They are made out of tough and soft materials like neoprene.

Elastomeric Bearing Pads are situated in Intermediate sources (for example struts right here may be defined as bridge beams, as well as peony supports. As their name suggests, they perform the insufficient strength task of transferring loads on the superstructure and allowing its mobility under the conditions of a changed unfavorable environment. Without inflicting harmful stresses, might jeopardize the systems supporting members and its stability. If the construction material of the bridges prosthesis is too stressed, its fracture is a high likelihood.

Bridges do not suffer major breakdowns is not the only function of the flexible gaskets. The cutting cost of cushions can increase the bridges lifespan. By the way, this washer will be useful for the state since it will postpone the complete repair of the bridge until necessary. The shoe works as a protective layer for the feet and enables walking over expansive distances

Superior Load-Bearing Capacity and Customization

Our rubber bridge bearing pads are designed to withstand loads up to 1000 kN and can be tailored in shape and dimensions-rectangular, circular, and various sizes to meet specific project requirements. This flexibility ensures compatibility with diverse bridge designs, optimizing both performance and longevity.

Engineered for Extreme Durability and Weather Resistance

Crafted from high-quality natural and neoprene rubber using advanced compression molding, these pads offer outstanding resistance to ozone, ultraviolet radiation, water absorption, and extreme temperatures (from -40C to +70C). With excellent mechanical properties, they maintain integrity even in challenging environments.

Effortless Installation and Maintenance-Free Operation

Thanks to precision manufacturing and surface finishes, installation of the pads is straightforward. The robust construction ensures minimal maintenance is needed during their extended operational life, making them a cost-effective and reliable solution for bridge support and vibration isolation applications.

FAQ's of Rubber Bridge Bearing Pads:

Q: How are rubber bridge bearing pads installed?

A: Rubber bridge bearing pads are installed between the superstructure and substructure of a bridge. Their precision design ensures quick placement without special tools; simply position the pad according to specified dimensions and secure as per engineering standards. Minimal adjustments and no complex machinery are required.

Q: What standards do these bearing pads comply with?

A: These pads are manufactured in strict adherence to IS:3400, AASHTO, and BS EN 1337 standards, ensuring global compatibility and meeting rigorous quality and safety requirements for bridge construction and allied applications.

Q: When should rubber bridge bearing pads be used?

A: They should be used wherever there is a need to accommodate structural movements, dampen vibrations, or evenly distribute loads in bridges, structural expansion joints, or building construction. The pads are suitable for new projects or as replacements in maintenance and upgrades.

Q: Where can these bearing pads be used besides bridge construction?

A: Besides supporting bridges, these pads are effective in applications like vibration isolation in buildings, heavy machinery installations, and structural expansion joints where reduction of structural stress and movement absorption are assets.

Q: What is the process of manufacturing these pads?

A: The pads are made by compression molding using premium natural rubber, chloroprene rubber (CR), or neoprene. Reinforcement plates are often integrated to boost load-bearing capacity, while innovative surface finishes provide anti-slip characteristics.

Q: What benefits do these bearing pads offer over conventional bearings?

A: They deliver superior durability, high load and tensile strength, excellent weather and aging resistance, and dampen vibrations efficiently, all while requiring very low maintenance. Their service life exceeds 20 years, ensuring long-term reliability.

Q: How can I select the right size and shape for my project?

A: Pad dimensions-including width, length, thickness, and shape-are fully customizable per client specifications. Consult with the manufacturer or supplier to specify your structural requirements, ensuring a tailored solution that fits your project needs precisely.
